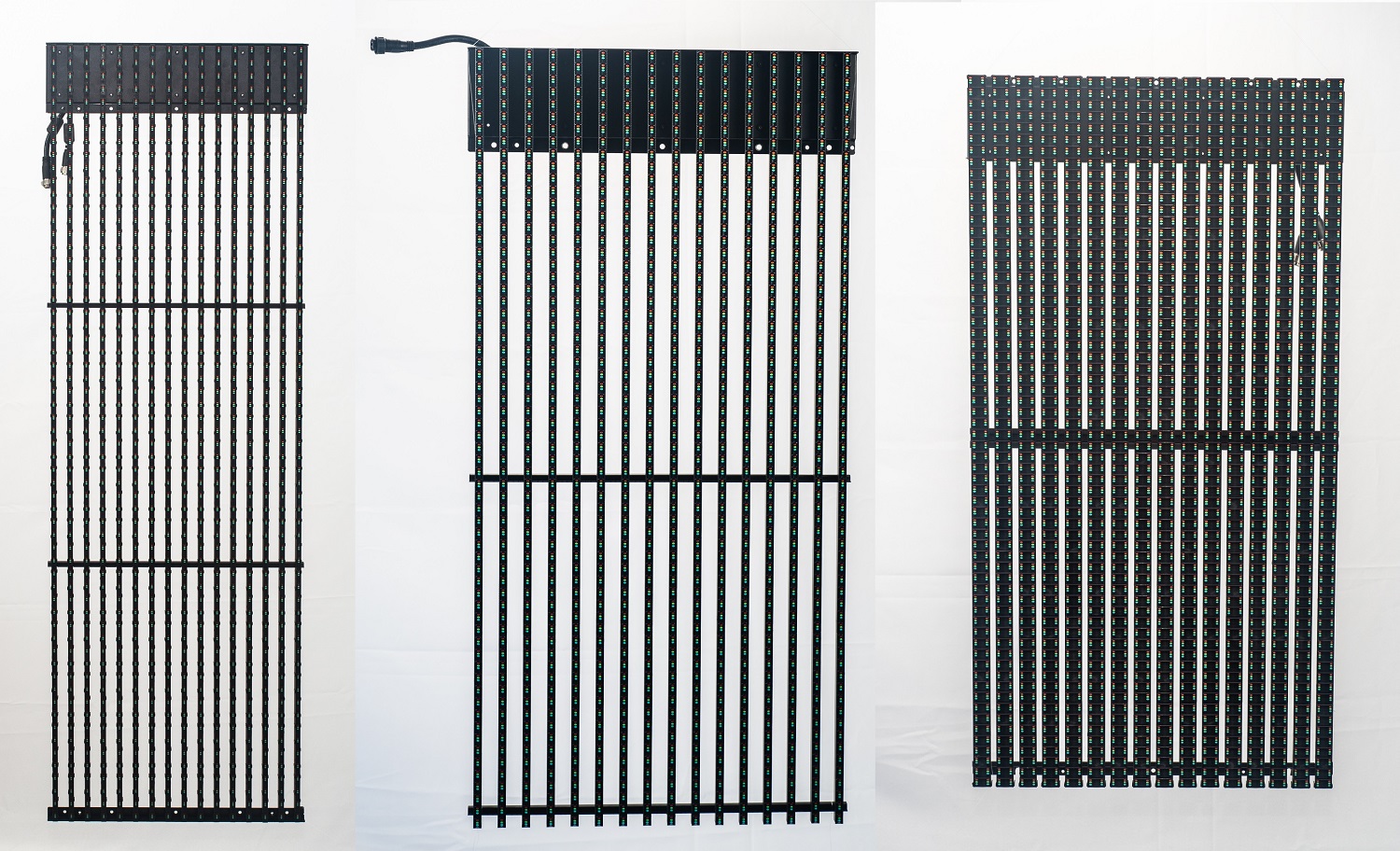

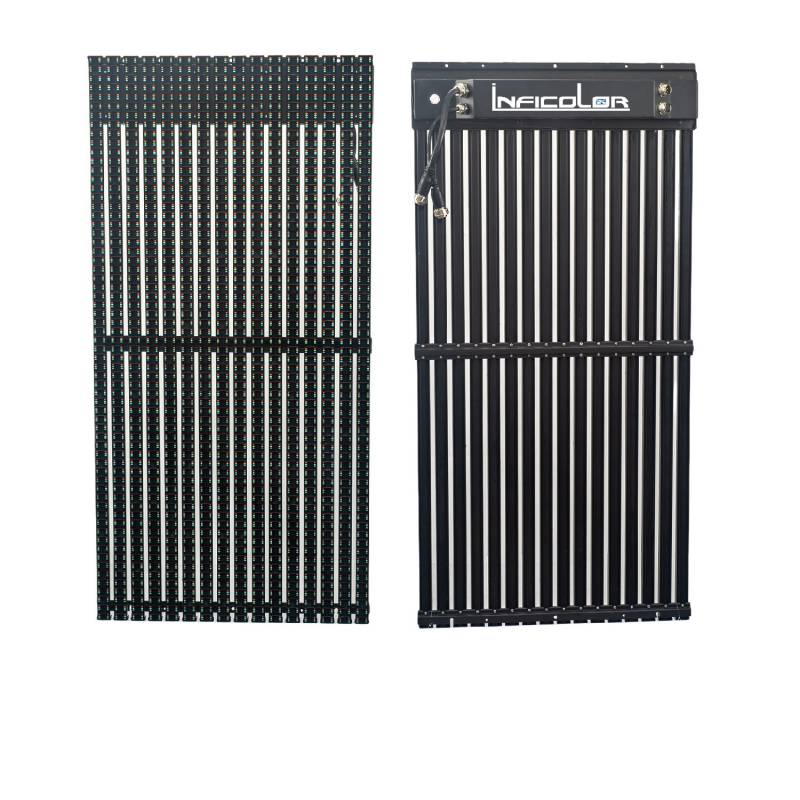

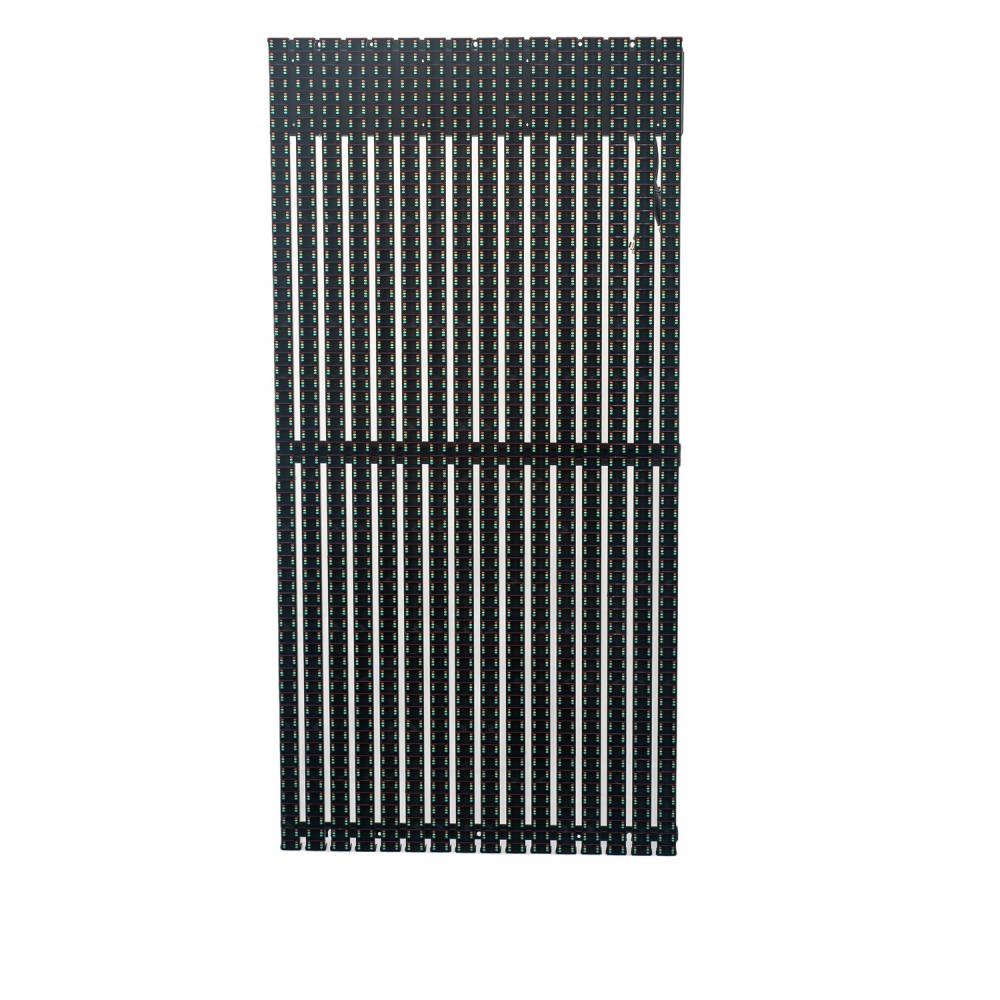

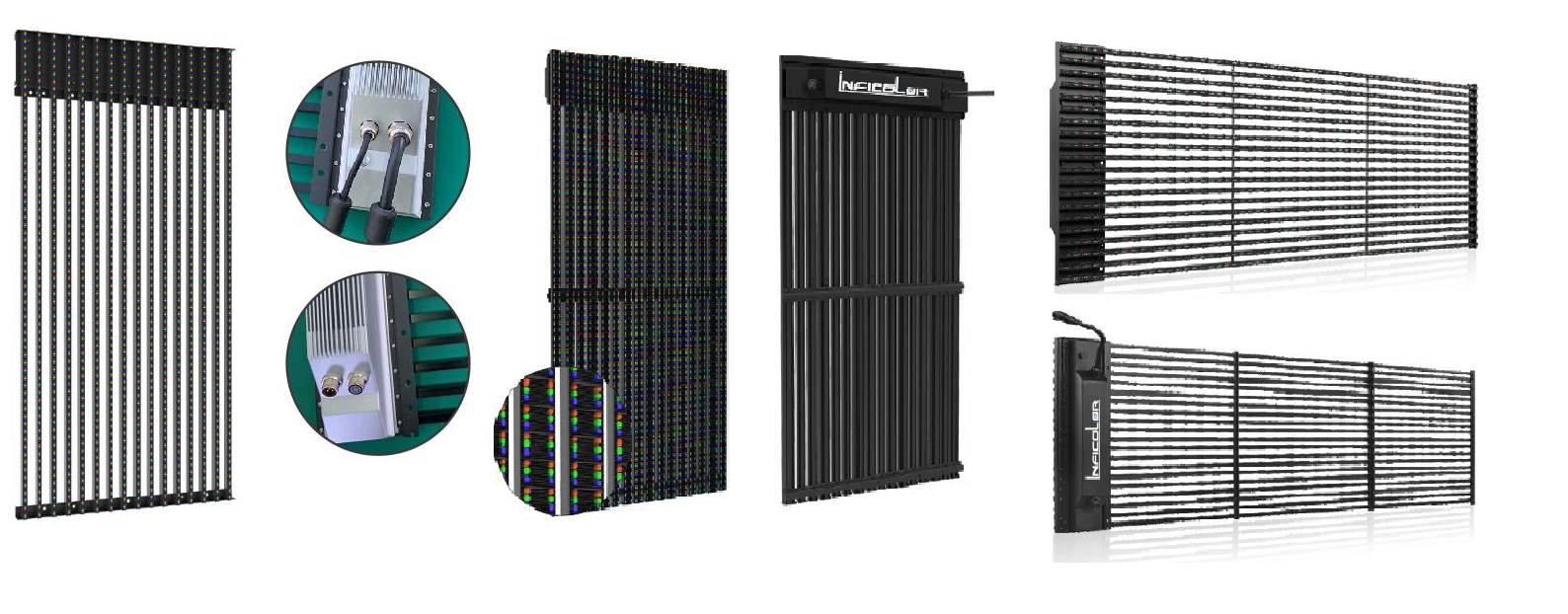

IM 500X1000 Series Outdoor mesh LED Display
1. The LED Strip adopts all-aluminum design, with strong UV resistance.

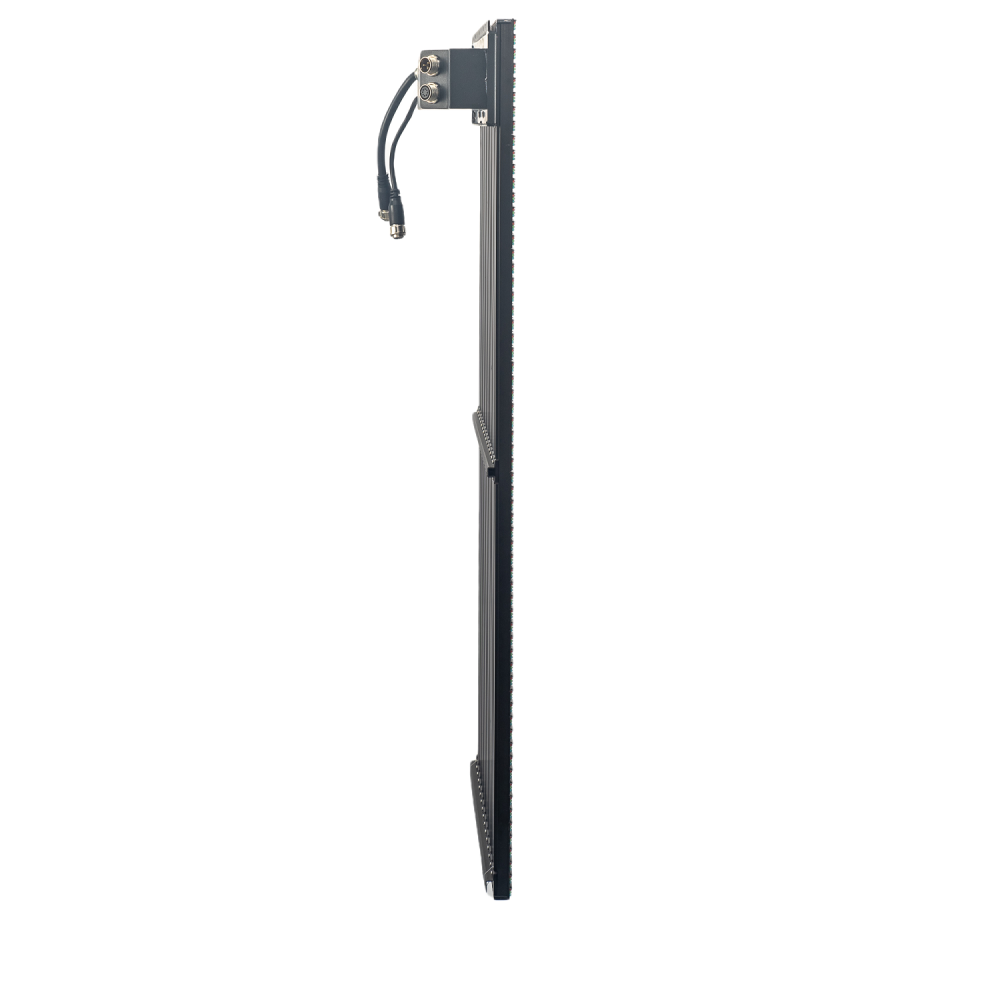

2. Integrated design: integrated design of power supply and signal line, aviation plug design. It saves a lot of wiring and installation time.
3. Ultra-low power consumption and high efficient heat dissipation.

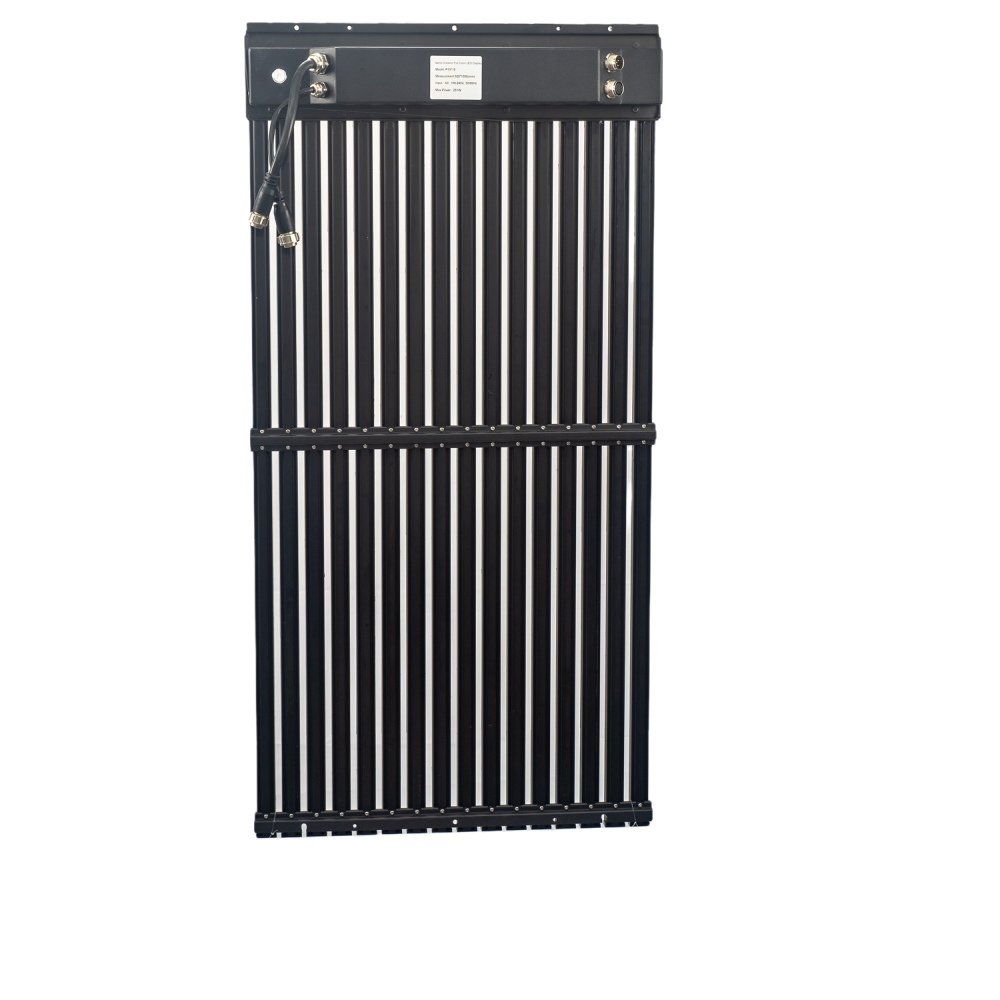

4. Both front and rear service is supported. no need to reserve maintenance channels
5. High transparency, safe for wall facade installation, wertherworthy rank up to 12 grade.
6. High degree of protection: IP67 front and rear, no other protection facilities are needed.

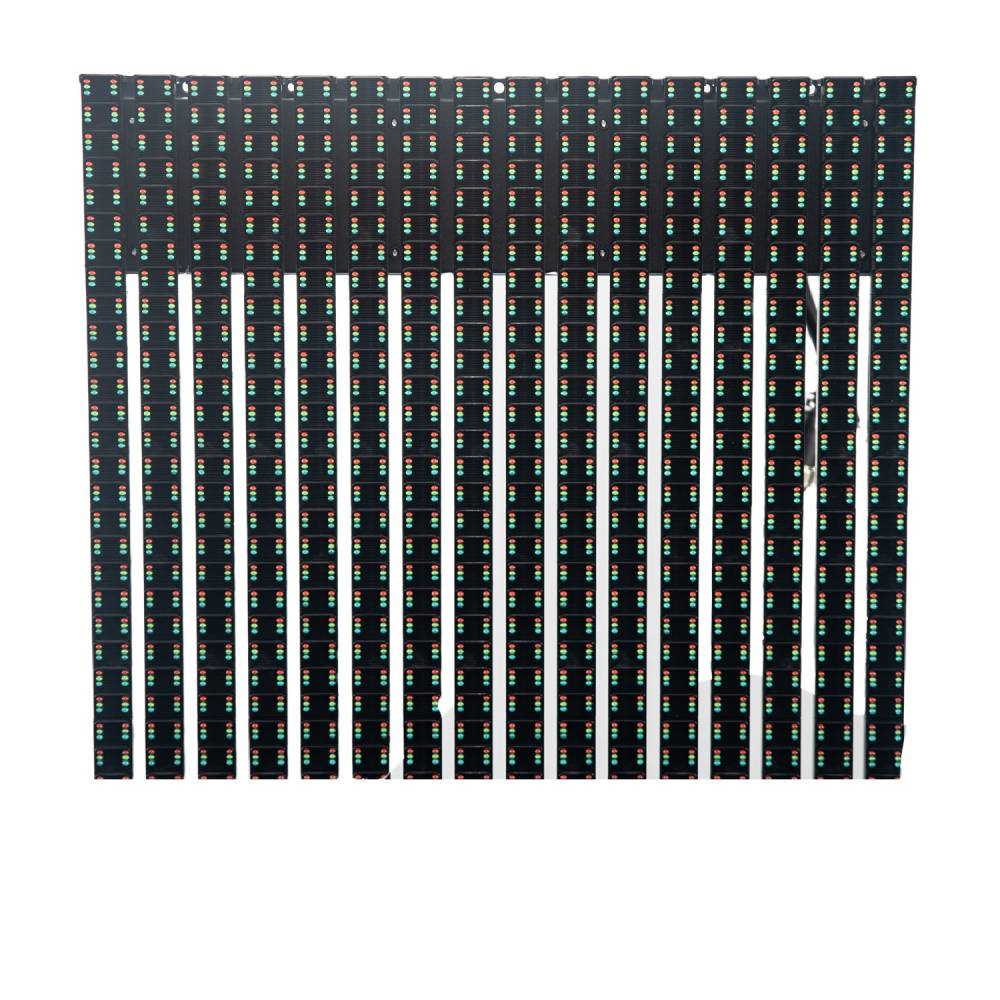

7. High Brightness: using high-end Epistar chip DIP LED lamp, the brightness can reach from 6000 to 10000nits.
8. Easy maintenance, LED Strip replacement from front side, easy and quick.
9. Minimal 3years warranty.
.png)
SPECIFICATION
| Item | PH15.625 | PH16 | PH15/31 | PH31 | PH25 | PH25/31.2 | PH25/41.6 | PH25/50 |
| Model | IM150D | IM160D | IM15-310D | IM310D | IM250D | IM25-31.2D | IM25-41.6D | IM25-50D |
| Pixel pitch | 15.625mm | 16mm | 15.625/31.25mm | 31.25mm | 25mm | 25/31.2mm | 25/41.6mm | 25/50mm |
| LED Type | DIP 346 | DIP 346 | DIP 346 | DIP 346 | DIP 346 | DIP 346 | DIP 346 | DIP 346 |
| Pixel configuration | 1R1G1B | 1R1G1B | 1R1G1B | 1R1G1B | 1R1G1B | 1R1G1B | 1R1G1B | 1R1G1B |
| LED Strip size | 23.8mm×1000mm | 1280mm×23.8mm | 10mm×1000mm | 10mm×1500mm | 1500mm×10mm | 1500mm×10mm | 1500mm×10mm | 1500mm×10mm |
| LED Strip resolution | 2×64 | 80×2 | 64×1 | 32×1 | 60×1 | 60×1 | 60×1 | 60×1 |
| LED Strip power consumption | 15W | 24.4W | 12W | 7Watt | 18W | 18W | 18W | 18W |
| Pixel density | 4096dots/m² | 3906dots/m² | 2048dots/m² | 1024dots/m² | 1600dots/m² | 1280dots/m² | 960dots/m² | 800dots/m² |
| Cabinet material | Aluminum | Aluminum | Aluminum | Aluminum | Aluminum | Aluminum | Aluminum | Aluminum |
| Cabinet size(mm) | 500×1000 | 1280×320×83 | 500×1000 | 500×1500 | 1500×500×83 | 1500×500×83 | 1500×500×83 | 1500×500×83 |
| Cabinet weight | 10.5KG | 10KG | 7KG | 9KG | 9KG | 8.5KG | 8KG | 7.5KG |
| Best viewing distance | >16m | >16m | >15m | >31m | >25m | >25m | >25m | >25m |
| Max. Power consumption/m2 | 580Watt/m2 | 590Watt/m2 | 600Watt/m2 | 455Watt/m2 | 480Watt/m2 | 455Watt/m2 | 400Watt/m2 | 270Watt/m2 |
| Average power consumption/m2 | 200Watt/m² | 200Watt/m² | 200Watt/m² | 150Watt/m² | 140Watt/m2 | 130Watt/m2 | 125Watt/m2 | 80Watt/m2 |
| Brightness | 8500-10000cd/m² | 8500-10000cd/m² | 8500-9500cd/m² | 8000-9000cd/m² | 8000-10000cd/m² | 8000-9000cd/m² | 7000cd/m² | 6000cd/m² |
| Transparency rate | 24% | 32% | 65% | 68% | 60% | 68% | 75% | 80% |
| Scan method | Static | Static | Static | static | Static | Static | Static | Static |
| Refresh rate | 3840Hz | 3840Hz | 3840Hz | 3840Hz | 3840Hz | 3840Hz | 3840Hz | 3840Hz |
| Best viewing angle | H: 120°/ V: 55° | H: 120°/ V: 55° | H: 120°/ V: 55° | H: 120°/ V: 55° | H: 120°/ V: 55° | H: 120°/ V: 55° | H: 120°/ V: 55° | H: 120°/ V: 55° |
| Gray scale level | 16bits | 16bits | 16bits | 16bits | 16bits | 16bits | 16bits | 16bits |
| Color temp. | 6500K | 6500K | 6500K | 6500K | 6500K | 6500K | 6500K | 6500K |
| Control method | Synchronize | Synchronize | Synchronize | Synchronize | Synchronize | Synchronize | Synchronize | Synchronize |
| Driving method | Constant current | Constant current | Constant current | Constant current | Constant current | Constant current | Constant current | Constant current |
| Working voltage | AC220V/110V±10% | AC220V/110V±10% | AC220V/110V±10% | AC220V/110V±10% | AC220V/110V±10% | AC220V/110V±10% | AC220V/110V±10% | AC220V/110V±10% |
| Working temp. | -20℃-50℃±10% | -20℃-50℃±10% | -20℃-50℃±10% | -20℃-50℃±10% | -20℃-50℃±10% | -20℃-50℃±10% | -20℃-50℃±10% | -20℃-50℃±10% |
| Frame change frequency | 60HZ | 60HZ | 60HZ | 60HZ | 60HZ | 60HZ | 60HZ | 60HZ |
| IP Rating | IP67 | IP67 | IP67 | IP65 | IP67 | IP67 | IP67 | IP67 |
| MTBF | 10,000H | 10,000H | 10,000H | 10,000H | 10,000H | 10,000H | 10,000H | 10,000H |
| Lifespan | 100,000H | 100,000H | 100,000H | 100,000H | 100,000H | 100,000H | 100,000H | 100,000H |

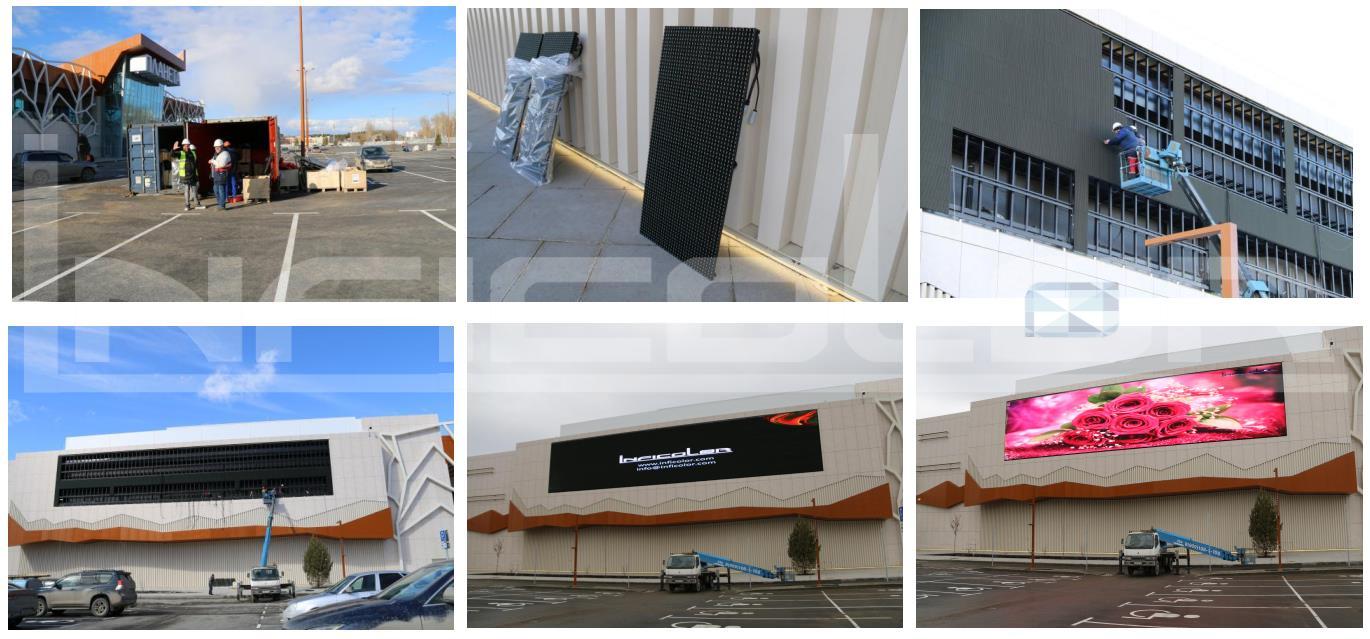

Install cases: 200sqm in Perm, Moscow @ April, 2021
